Manufacturing Process

Manufacturing Process

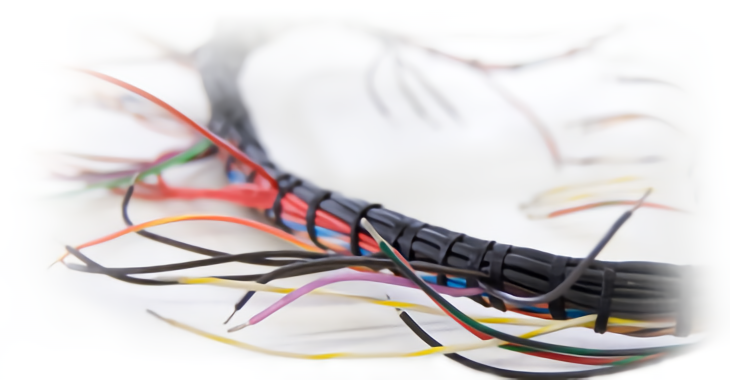

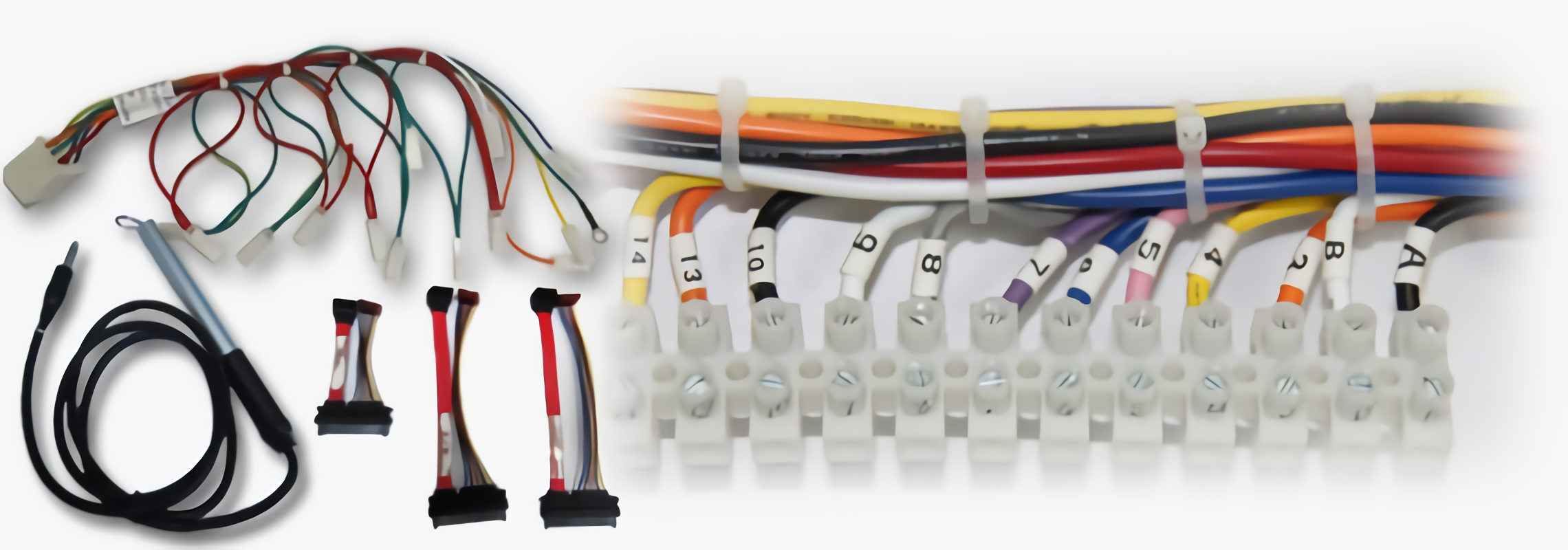

Cable harnesses can be simple, two wires with basic terminals on the end, or a complex looping of many conductors with a variety of connectors and terminations. In addition, cable harnesses often need special shapes, sheathing, mechanical fastening and over-molded connectors, grommets or strain reliefs. Edgar can assist in the custom design of your cable and wiring harness or quote your existing wire and cable harness design.

Processing Capabilities

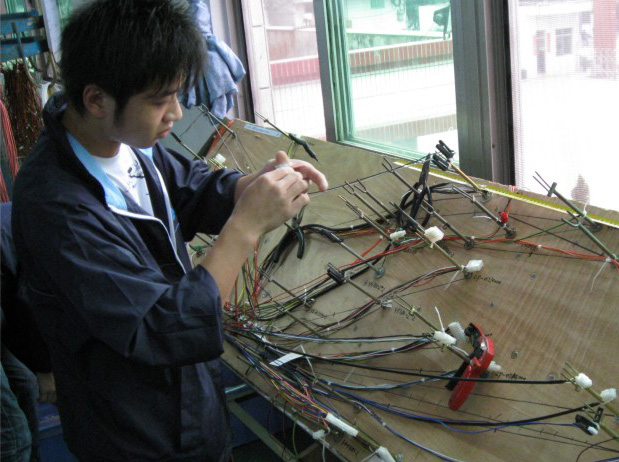

  • We have a full complement equipment to process wire harness, from basic hand tools to semi-automatic machines to fully automated systems, depended on the accuracy needed.
  • We have our tool and mold fabrication workshop in house to cater customer need in short lead-time.
  • We have an extensive tool grib/cutter/applicator that covers most terminal manufacturers.
  • Ultrasonic welding.
  • Customer over-molding for kind of connectors, strain reliefs, grommets, and different type of resin used.
  • Automated wire cutting equipment capable of handling a wide range of wires and cables.
  • A full engineering team with combined experience to build harnesses to your print.
  • Fully compliance to UL wire harness manufacturing process and IPC A-620
